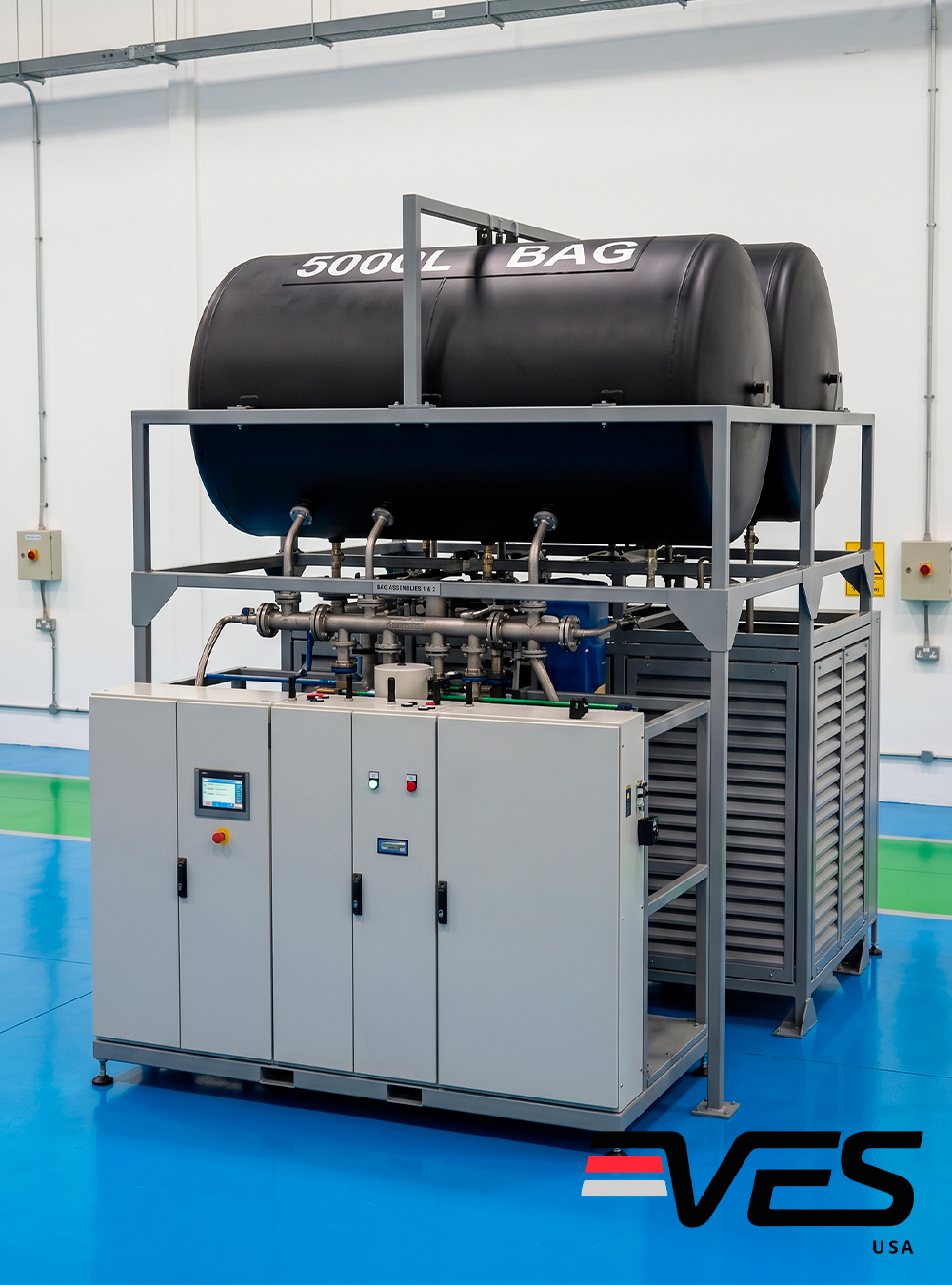

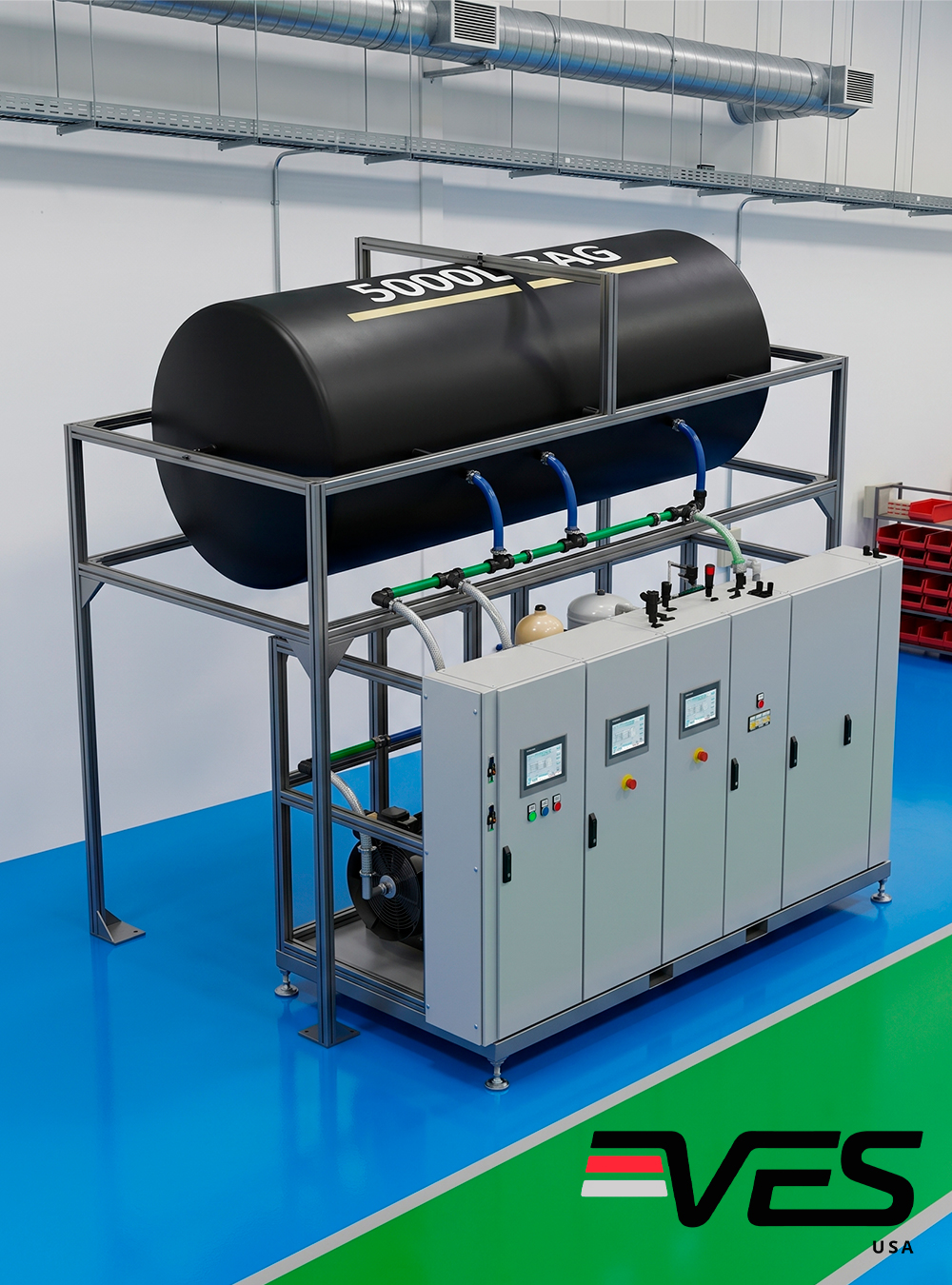

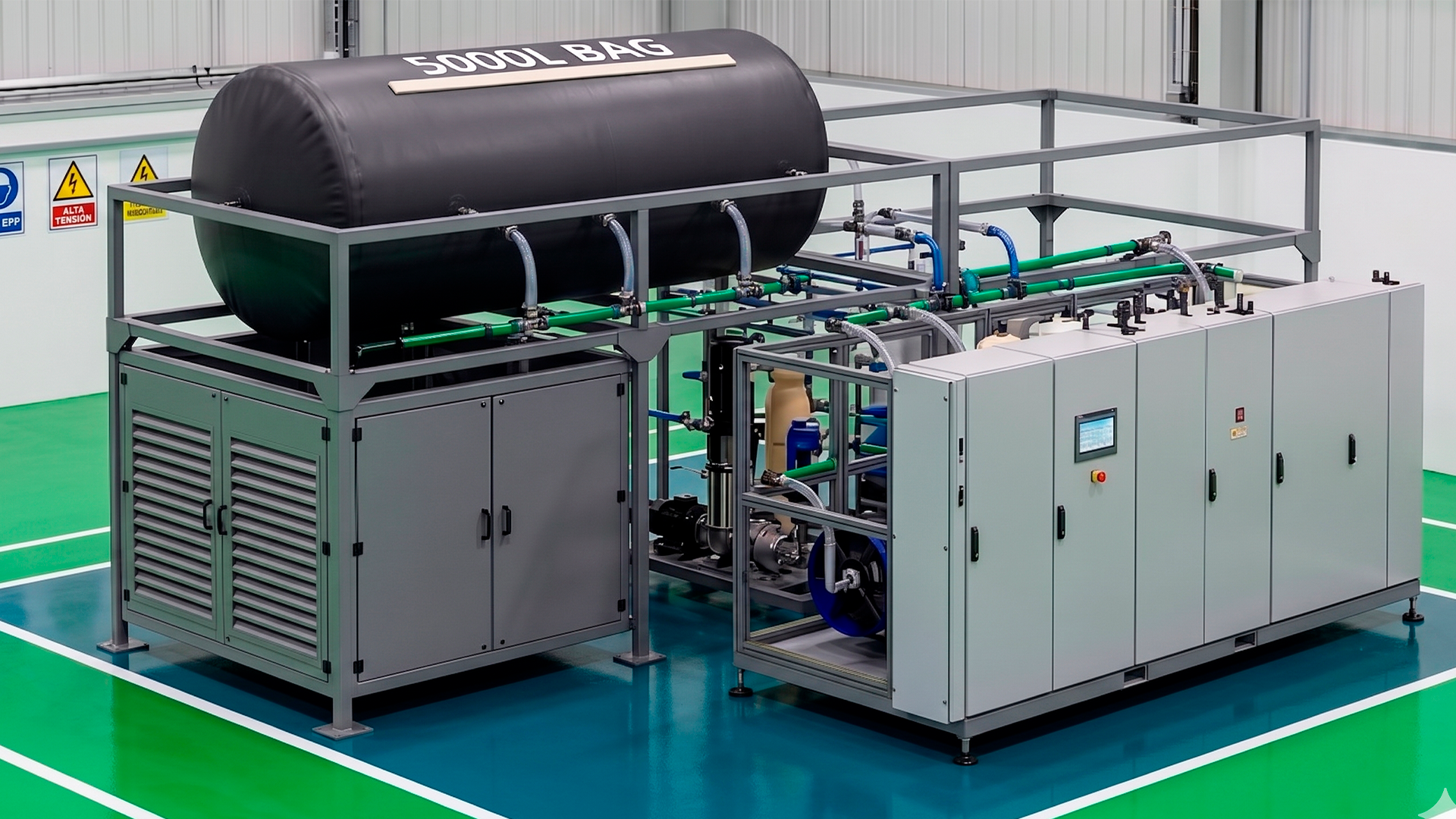

A centralized system that recovers, purifies, stores, and re-injects helium into the leak testing process.
The VES helium recovery for high pressure system is a centralized solution designed to recover, purify, store, and re-inject helium in leak testing applications that require high pressure, large storage capacity, and flexible integration.
Built for demanding helium leak testing processes, this system delivers compression up to 80 m³/hr, high-pressure storage up to 250 bar, outlet pressure configurable up to 100 bar, up to 80 m³ per bag, and scalability up to 180 m³ with two bags, plus multi-brand compatibility, helium concentration monitoring, helium filtration, and dynamic gas mixing.
More storage to absorb real production demand today and expand tomorrow.
Adapts to different machines, layouts, and plant return conditions.
Designed for plants that need to recover and purify helium at high pressure, stabilize supply, and prepare their operation for growth.
Recover, purify, compress, and re-inject helium back into your leak testing process. The system includes high-pressure storage up to 250 bar and configurable outlet pressure for demanding applications.
The system architecture is scalable and can be configured from 80 m³ up to 180 m³ of storage, depending on process demand. This allows it to absorb larger volumes of returned helium, connect more equipment, and support the growth of helium leak testing processes without redesigning the entire solution. This makes it a stronger solution for helium recovery for high pressure applications that need room to grow.
The system can be integrated with leak testing machines from different brands and can operate with an inlet at vacuum or atmospheric pressure, making adoption easier in plants with existing infrastructure and installed equipment. This flexibility is especially valuable in helium recovery for high pressure projects where integration conditions vary from plant to plant.
Our engineering, service, and spare parts teams are strategically located in:
This eliminates long wait times for international support and helps reduce mean time to repair (MTTR), improving response speed for helium recovery for high pressure operations.
The system includes helium concentration monitoring, helium filtration, controlled top-up, alerts, and recommended redundant configurations for critical environments. This helps maintain gas quality, sustain supply stability, and reduce the risk of downtime caused by system failure. For manufacturers looking for reliable helium recovery for high pressure, this means better control, better continuity, and less operational risk.
Recover, purify, compress, and re-inject helium for leak testing processes that require stable pressure and high performance. Up to 250 bar of storage and outlet pressure configurable up to 100 bar.
More capacity to absorb helium return, connect more machines, and support production growth without redesigning the entire solution.
VES Connect gives you full visibility live KPIs, automatic reports, and predictive alerts.
Stay compliant. Stay in control.
Integrates with leak testing machines from other brands, not just VES equipment.
Operates with a vacuum or atmospheric-pressure inlet and can run with 100% helium or custom gas mixtures based on your leak testing process.
VES offers configurations with and without redundancy, but for critical environments recommends backup high-pressure compression and, where applicable, backup vacuum capability to reduce the risk of downtime caused by system failure.
If your team is evaluating helium recovery for high-pressure leak testing, VES can help you define the right system for your process, pressure requirements, storage capacity, and future expansion.
Complete the form and our engineering team will review your application and get back to you with the next steps.
Response within 24 hours.
Fill out the form and let’s start building the right solution for your plant.
